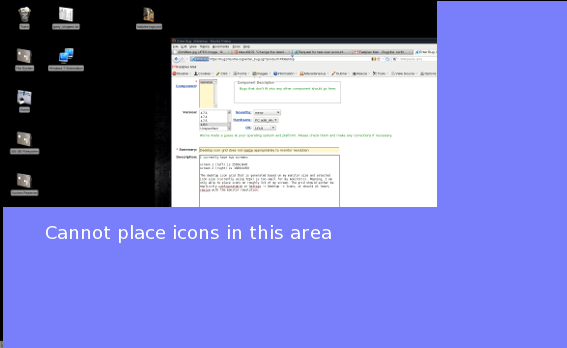

Created attachment 3618 See the visual I currently have two screens: screen 1 (left) is 2560x1440 screen 2 (right) is 1680x1050 The desktop icon grid that is generated based on my monitor size and selected icon size (currently using 72px) is too small for my monitor(s). Meaning, I am only able to place icons on roughly 3/4 of my screen. The grid should either be explicitly configuratable in Settigs -> Desktop -> Icons, or should at least, resize with the monitor resolution.
Thanks for reporting and sorry for the very late reply ! Found out that the method "xfdesktop_grid_is_free_position" is to blame. Specially the last line: return !icon_view->priv->grid_layout[col * icon_view->priv->nrows + row]; Which either returns 0, or some random garbage(uninitialized memory?). Here some logged output: [1556786705466]: xfdesktop_grid_is_free_position - row: 2, col: 20, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786705466]: xfdesktop_grid_is_free_position - strange check: -559038737 [1556786705507]: xfdesktop_grid_is_free_position - row: 2, col: 19, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786705507]: xfdesktop_grid_is_free_position - strange check: -559038737 [1556786705557]: xfdesktop_grid_is_free_position - row: 0, col: 4, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786705558]: xfdesktop_grid_is_free_position - strange check: 0 [1556786706213]: xfdesktop_grid_is_free_position - row: 5, col: 0, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786706213]: xfdesktop_grid_is_free_position - strange check: 0 [1556786706218]: xfdesktop_grid_is_free_position - row: 1, col: 28, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786706226]: xfdesktop_grid_is_free_position - strange check: -559038737 [1556786706228]: xfdesktop_grid_is_free_position - row: 6, col: 0, icon_view->priv->nrows: 10, icon_view->priv->ncols: 37 [1556786706230]: xfdesktop_grid_is_free_position - strange check: 0 After fixing "xfdesktop_grid_is_free_position" with just returning TRUE after the first check, the icons are loaded correctly, but somehow "locked" ... like described in this bug: https://bugzilla.xfce.org/show_bug.cgi?id=13873 I will further investigate and hopefully have a fix for both bugs soon.
Created attachment 8488 patch for master ok, finally I found the real cause. There is a method "xfdesktop_icon_view_setup_grids_xinerama" which checks if an icon is inside the monitor boundary, and deletes them from the list, if they are out of bound. This method seems to be wrong in two aspects: 1. Icons positions in the grid are not stored relative to a monitor boundary. They are stored relative to the complete workarea, which may span multiple monitors. 2. There seems to be some miscalculation inside the method. Even if an icon is inside the boundary, the method deletes it, resulting in a grid which is to small. I dont think it is necesarry at all to delete out of bound items, since actually out of bound items are not added to the desktop in the first place. This already works fine ... so IMO fine to drop "xfdesktop_icon_view_setup_grids_xinerama" and it's submethods.
Created attachment 8489 patch for 4.12 branch
*** Bug 13873 has been marked as a duplicate of this bug. ***
Meh, I found out that I am partly wrong. Where my patch for 4.12 realy fixes the problem, for master I cannot reproduce the problem itself. So it looks like some other commit meanwhile fixed the problem for master .. I will further test/bisect and search which commit fixed it for master. (In reply to alexxcons from comment #2) > ok, finally I found the real cause. > > There is a method "xfdesktop_icon_view_setup_grids_xinerama" which checks if > an icon is inside the monitor boundary, and deletes them from the list, if > they are out of bound. > This method seems to be wrong in two aspects: > 1. Icons positions in the grid are not stored relative to a monitor > boundary. They are stored relative to the complete workarea, which may span > multiple monitors. Still not sure why the code works for master ... have to further test this method, since the calculation looks suspicious. > I dont think it is necesarry at all to delete out of bound items, since > actually out of bound items are not added to the desktop in the first place. > This already works fine ... so IMO fine to drop > "xfdesktop_icon_view_setup_grids_xinerama" and it's submethods. A use-case for "xfdesktop_icon_view_setup_grids_xinerama" could be, if a new monitor is plugged while the computer is off. Via the "latest" symlink this could trigger the load of a grid which does not match the monitor bounderies any more. ... I will come up with a better patch soon (or possibly just a cherry-pick from master)
Ok, looks like this bug got fixed on master by moving to gtk3 by commits ec0d9e9f7022ff1145ff27508693baaaec93b9e2 and 13ca675d2713b2da63c6869d0eb4d71a039a5393. ( By using GdkDisplay instead of GdkScreen for different calls) I cannot apply these commits to the 4.12 branch, since they rely on methods, only available in gtk 3.22. And I dont want to remove xfdesktop_icon_view_setup_grids_xinerama completly, like described above. So there will be no fix for the 4.12 branch, however master does not suffer from the bug any more.
