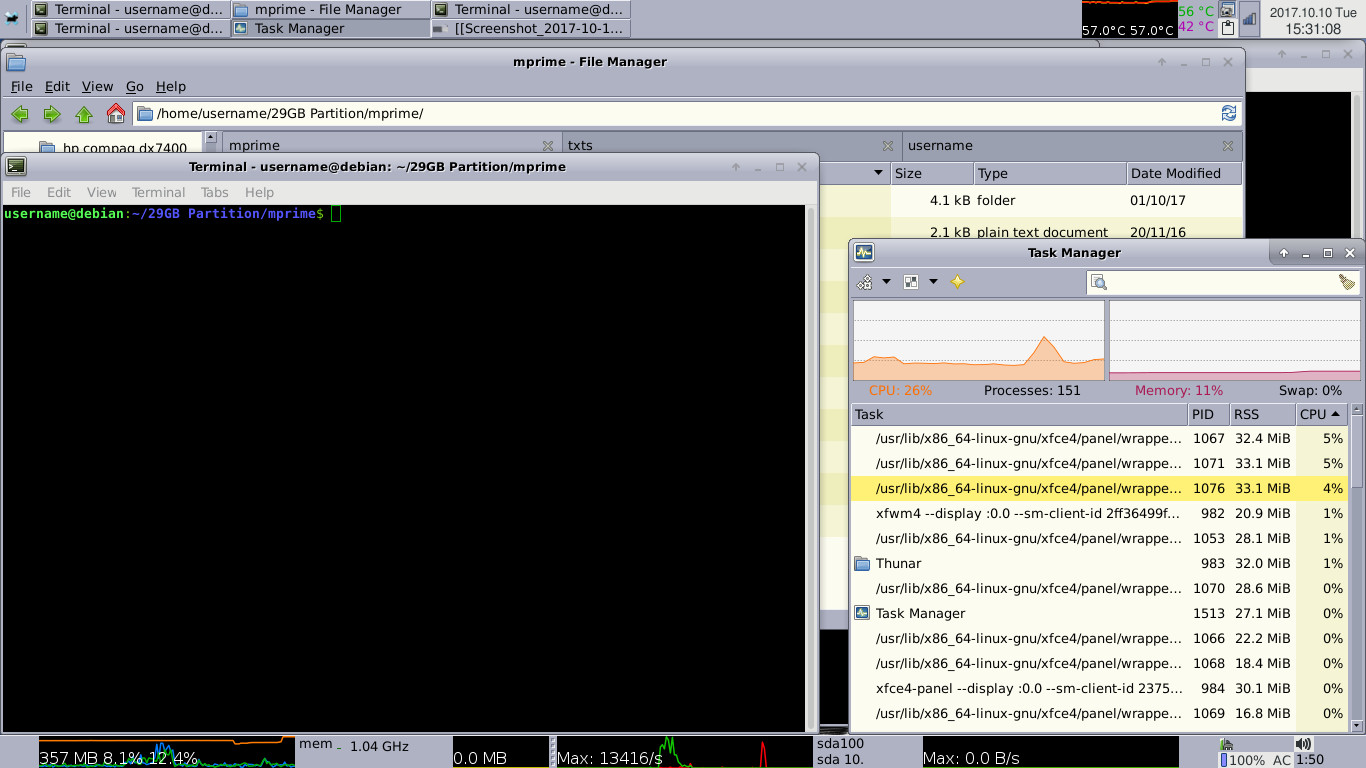

Created attachment 7347 Idle CPU usage I found a strange behaviour when I ran a stress test called "mprime" that I downloaded some time ago (can't remember the source), namely that the xfce4-hwmonitor graph I configured to display the CPU usage of the two cores on my laptop did not respond at all to the stress test. I thought at first the program was buggy but the CPU usage was displayed in the "xfce task manager" and the core temperatures rise realistically when mprime is run. The xfce4-hwmonitor CPU graph has responded reasonably to other CPU loads such as running Firefox and opening/closing applications in the few months I've been using it. I have three screenshots with "xfce task manager" configured to update once every 10 seconds. The graph at the bottom left of my desktop displays memory usage (orange) and cpu0 and cpu1 (green/blue) with text overlay (memory usage scrolls about about a tenth of the speed of the cpus). The graph at the top right to the left of the clock displays core0/1 temperature (yellow/red). The task manager is on the right. OS is Debian 9.1, xfce4-hwmonitor is installed from the .deb packages in the Debian archives. The first screenshot shows slightly different measuring of CPU usage between xfce4-hwmonitor and xfce task manager... the laptop idles at about 10% CPU usage according to xfce4-hwmonitor and about 25% according to xfce task manager (the CPU is an AMD ultra-mobile core (bobcat) for netbooks/tablets.. very easily loaded).

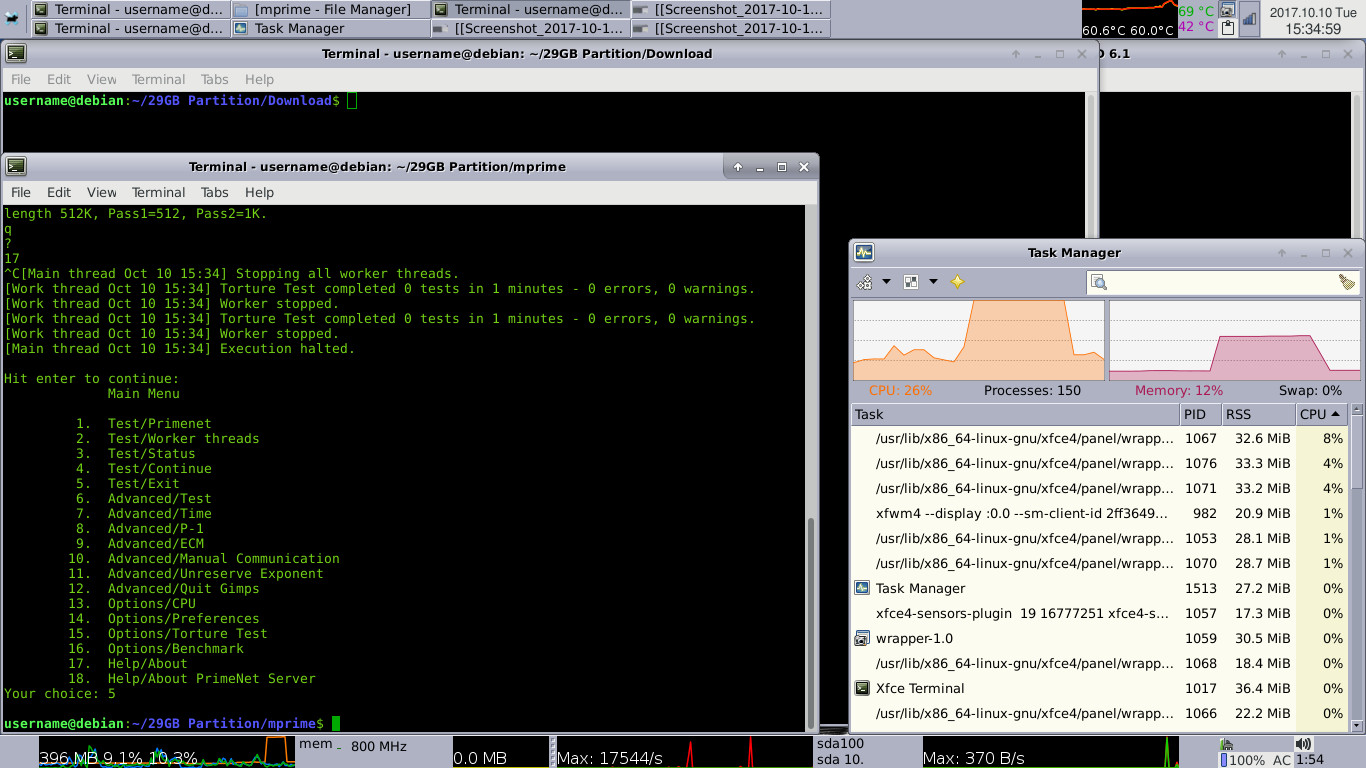

Created attachment 7348 mprime stress test not detected by xfce4-hwmonitor CPU graph
⇧ This is after running mprime for a bit, you can see the memory usage in the xfce4-hwmonitor graph, but the CPU curves do not respond... and the mprime burst is clear enough on the task manager.

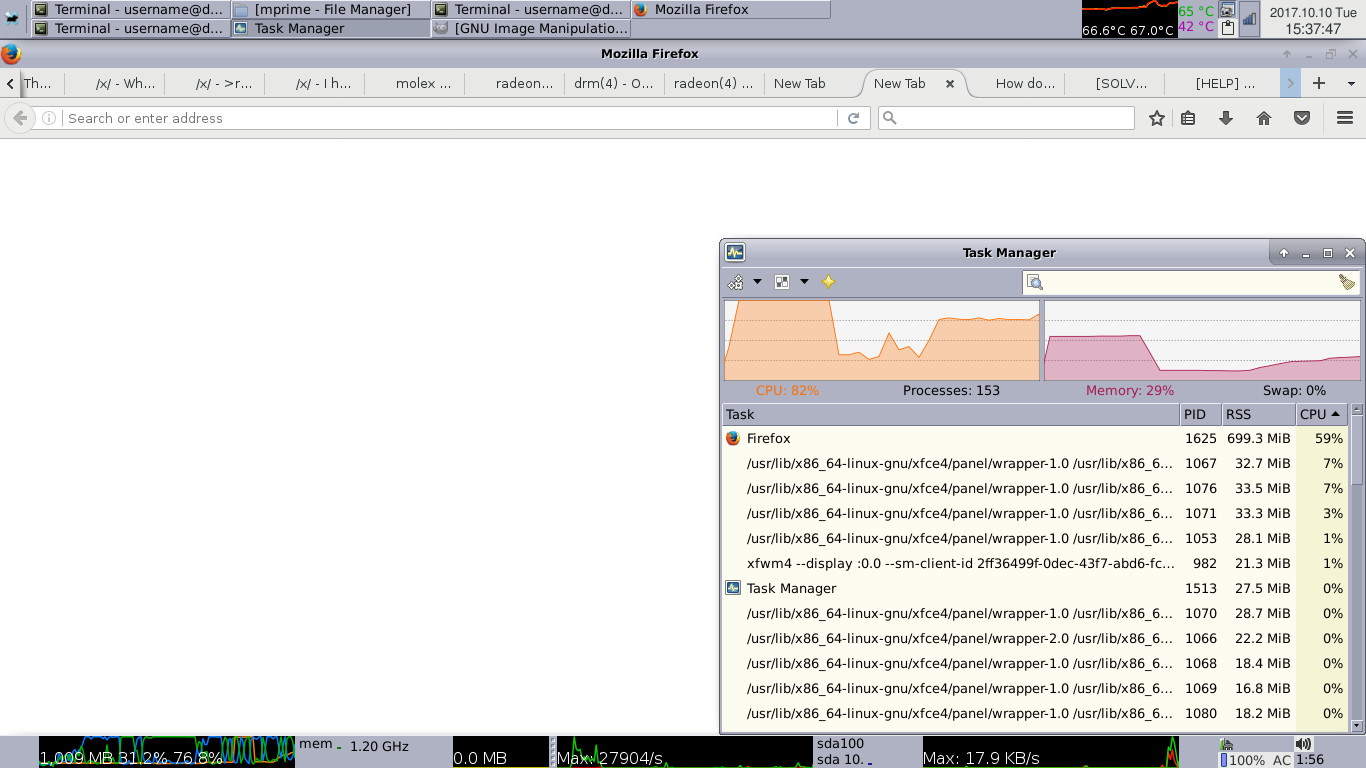

Created attachment 7349 Firefox And here the load due to starting Firefox appears correctly on both xfce4-hwmonitor and the task manager. If you want more diagnostic information you will need to tell me what commands or procedures to use as I'm ... slightly new to linux.
Yep, its actually by design: =============================== // don't count in dnice to avoid always showing 100% with SETI@home and // similar applications running double res = double(dtotal - dnice - didle - diowait) / dtotal; =============================== Its probably been that way for ~15 years. But, outside of the original programmer's preferences, if I used this monitor, I would at least want the option to report on ALL CPU usage... so I'll make this a feature request.
I see. A note on the main page explaining this feature/nuance of xfce4-hardware-monitor-plugin would probably suffice rather than adding "monitoring mprime/seti/etc" as an option.
This has been made configurable, I'm going to sit on it for a week to see if anything blows up before I make an official release.
Resolving as the new version has finally been released.
