Xfconf does not turn on the display
Status:
RESOLVED: FIXED
Severity:
critical

Comments

Description Yan Pas 2016-01-30 18:58:29 CET
For example, you have only one monitor.
Steps to reproduce:
1) Unplug your monitor
2) Plug it back.
-> Screen may be black (nvidia). Or mouse cursor may disappear(nouveau). In xfce4-display-settings it is impossible to turn on monitor (there is no tick "Set display as main"). System becomes unusable, the only wayout - to restart display manager.
Unreproducible in MATE and other DEs, so it is xfce's problem.
Moreover if you unplugged and plugged your monitor back and rhe only mouse cursor disappeared - switching to tty1 and then back to your X server - your screnn will be absolutely black.
In other words XFCE does not recognize the monitor which was plugged back. Try 1 and 2 steps 2-3 times, as for me the bugs reproduces in the first iteration.
Comment 1 Yan Pas 2016-01-30 19:25:27 CET

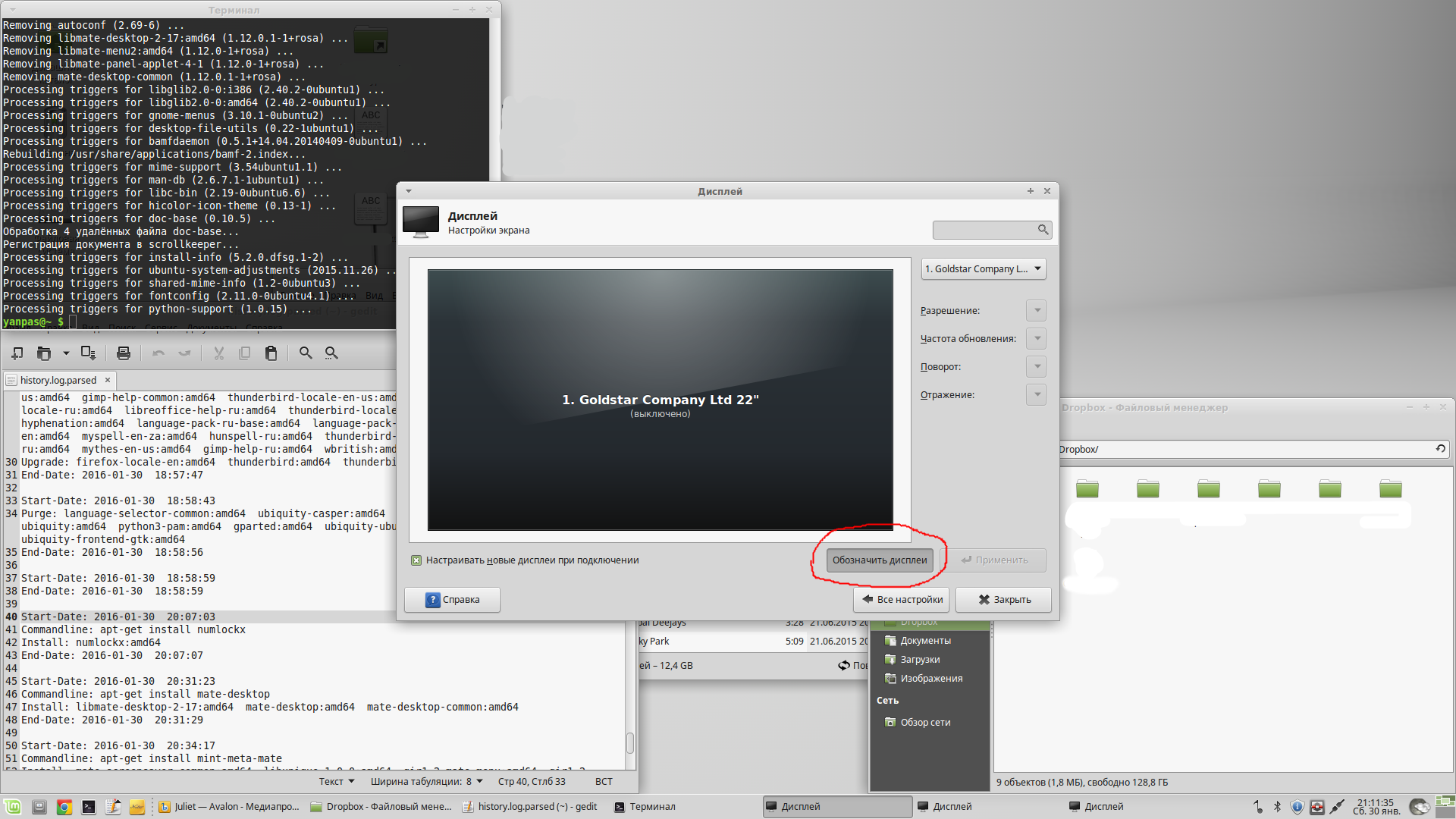

Created attachment 6591
screenshot1
Comment 2 Yan Pas 2016-01-30 19:29:08 CET

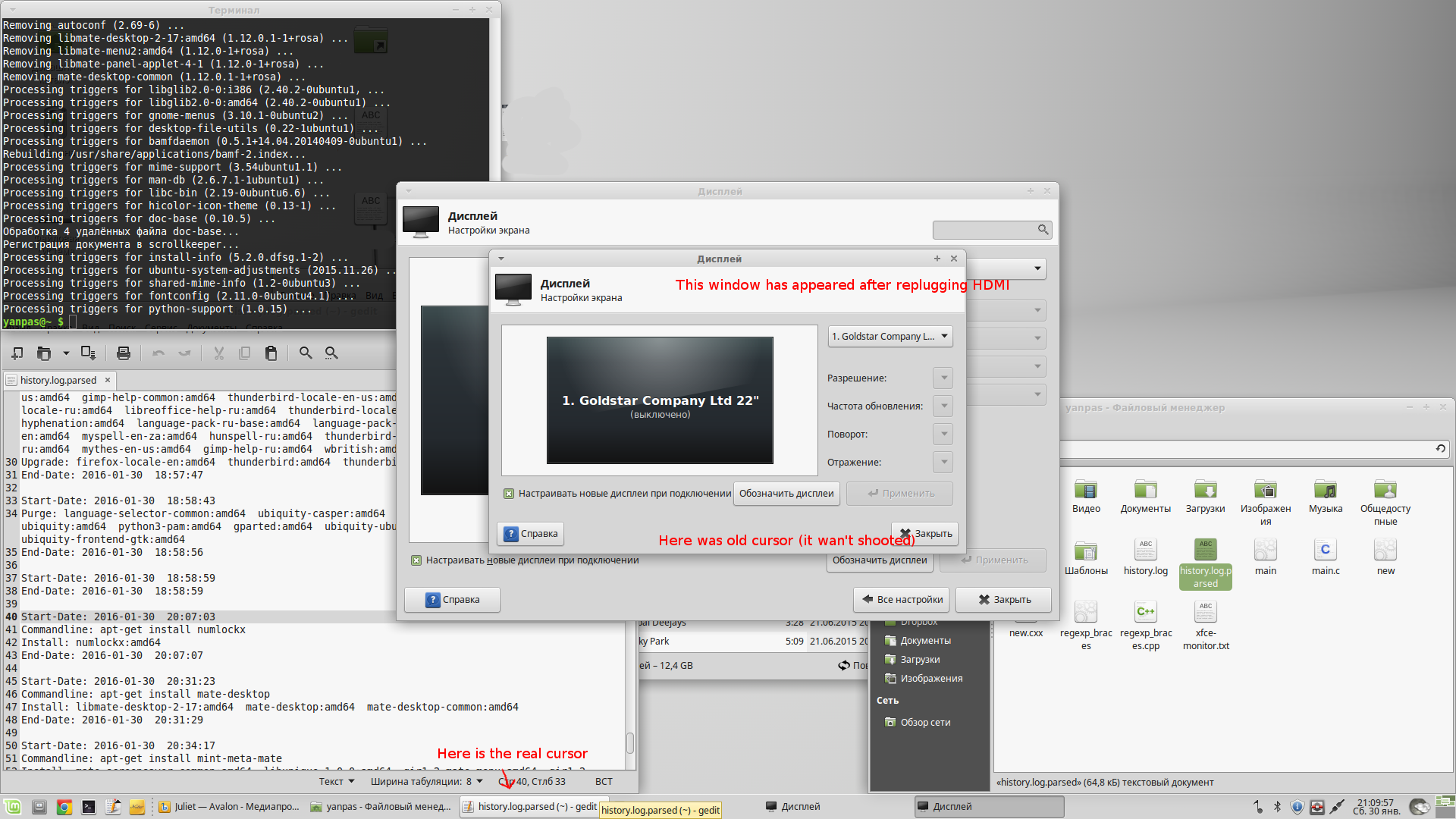

Created attachment 6592
screenshot2 with descriptions

I was blaming Nvidia before, I have conducted talks with them - but they were not able to reproduce bug.
I'm using Linux Mint 17.3 XFCE (as you see fresh install), kernel 3.19 and 4.2, xserver is 1.17 (lts-vivid) (I have also tried with 1.15)
Comment 3 Valery 2016-04-19 14:48:31 CEST
I have same problem!
"In other words XFCE does not recognize the monitor which was plugged back".

my desktop:
M4A88T-I DELUXE, 4xAMD Athlon(tm)II X4 610e, Radeon HD 4250, BenQ V2210 Eco, HDMI.
Debian Stretch and Archlinux.
Xfce4.12, xorg-server 1.18, lightdm, GL_VERSION: 3.0 Mesa 11.2.1, Gallium 0.4 on AMD RS880 (DRM 2.43.0, LLVM 3.7.1), kernel 4.4 - 4.5.

if unplug/plug my monitor on VT7 then xfce4 does not find the monitor signal HDMI-0 on VT7.
but switch to virtual terminals operating normally (VT1-VT6 by ctrl+alt+F?), and the monitor turns.
MATE, LXDE, pure X, console do not have this problem.
this problem repeats in a case with several monitors.

I like Xfce4, please help us!
Comment 4 Valery 2016-04-28 21:37:19 CEST
It seems this bug in the package xfce4-settings.
Bug appears when the daemon xfsettigsd is running.
when xfconfd works only bug is absent.
Comment 5 Michael Neuffer 2016-05-01 10:44:43 CEST

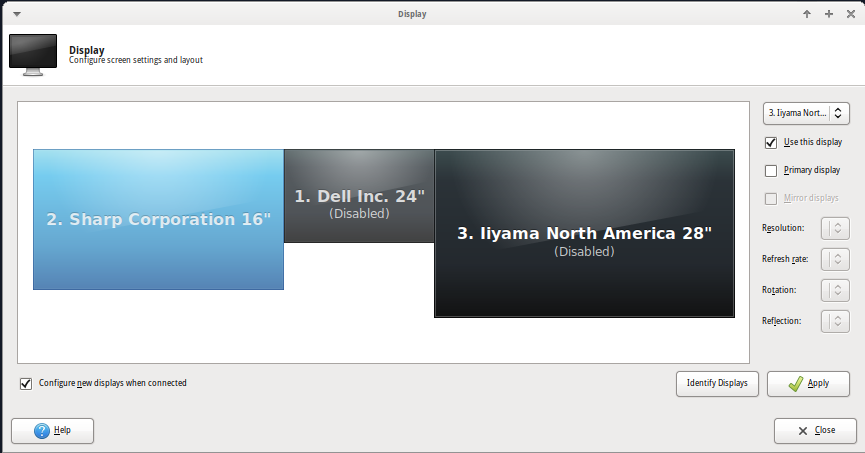

Created attachment 6661
Situation with settingsd disabled after trying to re-enable the 3rd screen, 2nd scree got switched off as well
Comment 6 Michael Neuffer 2016-05-01 10:48:58 CEST

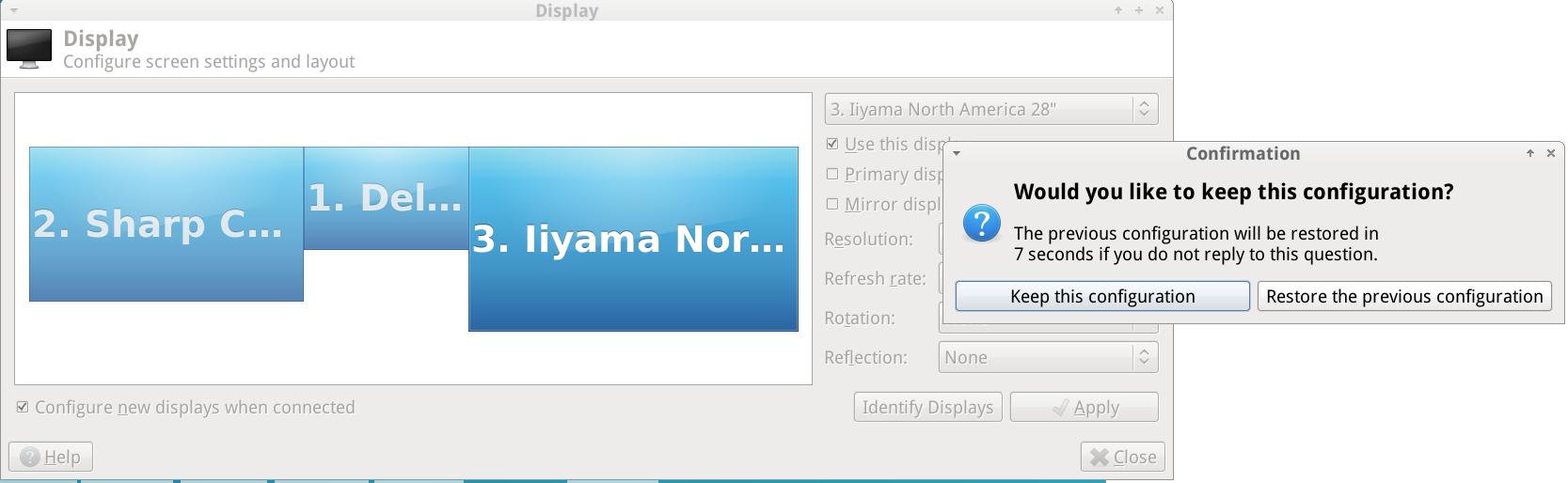

Created attachment 6662
This is how it should look like instead, unfortunately even if you reach this the settingsd will diable it again if you don't run an xrandr script fast enough.
Comment 7 Michael Neuffer 2016-05-01 11:05:53 CEST
I have a severe case of ME TOO here...

I have a setup with 3 displays and it seems once you disabled (powered down/ unplugged) one of the displays you can not re-enable it.

The Login/Lock Screen however enables all displays in 100% of the cases.
Unfortunately once once you're logged in, the problematic display is beeing disabled again. This is also the case after rebooting the machine or restarting the window manager.
Only trying for what it seems a gazillion times to re-enable the 3rd screen in the display config screen, interspersed with calling xrandr with the command below I can hit a timing where the display doesn't get disabled again immediately.

xrandr --output VGA-0 --off --output DP-5 --off --output DP-6 --mode 3840x2160 --pos 6080x0 --rotate normal --output DP-4 --mode 3200x1800 --pos 0x0 --rotate normal --output DP-3  --scale 1.5x1.5 --mode 1920x1200 --pos 3200x0 --rotate normal --output DP-2 --off --output DP-1 --off --output DP-0 --off


This is not necessarily the case in a 2 display configuration. There I can quite often recover by just locking the screens and logging back in once the login screen has power cycled both displays. Only infrequently I have as severe problems as in the 3 diplay config.



I just tried the above suggestion, killing the settings daemon triggered another longstanding bug: My font settings went haywire, all the menus, text under the icons, the text in the terminal windows etc turned microscopically small.

Trying to re-enable the 3rd display caused the 2nd display to be disabled as well. (See the attached screenshot)

neuffer@charion:~$ ps auxwww | grep xfset
neuffer   5650  0.0  0.0 365708 17208 ?        Ssl  08:54   0:00 xfsettingsd --display :0.0 --sm-client-id 29b40e0b7-f989-49a0-8d5d-722c26339e27
neuffer  13861  0.0  0.0  15752   944 pts/19   S+   09:25   0:00 grep --color=auto xfset
neuffer@charion:~$ kill 5650
neuffer@charion:~$ ps auxwww | grep xfset
neuffer  13869  0.0  0.0  15752   928 pts/19   S+   09:25   0:00 grep --color=auto xfset

Re-starting the daemon brought the warning below:

neuffer@charion:~$ xfsettingsd --display :0.0 --sm-client-id 29b40e0b7-f989-49a0-8d5d-722c26339e27
neuffer@charion:~$
(xfsettingsd:13873): xfsettingsd-WARNING **: Failed to configure CRTC 731.
Comment 8 Michael Neuffer 2016-05-01 11:13:51 CEST
Problably important in the context above:
default-display-manager:/usr/sbin/lightdm
Comment 9 Michael Neuffer 2016-05-01 11:18:46 CEST
This seems to be related:
https://bugzilla.xfce.org/show_bug.cgi?id=12184
Comment 10 Yan Pas 2016-05-02 23:22:31 CEST
My display manager is MDM, so I gues it is DM independent, nevertheless both are forks of GDM
Comment 11 Natanael Copa 2016-05-27 12:56:31 CEST
I have same issue, with intel chipset.

The workaround I use is: ctrl-alt-f1 for text console, then I do:

  export DISPLAY=:0; sleep 1s; xrandr --auto

And then i do: ctrl-alt-7 so xrandr --auto is run while i have that screen up.

This started to happen after I switched my 2x24" dell screens (vga+dvi) with a big ultrawide screen (3440x1440) on display port.
Comment 12 Natanael Copa 2016-05-31 10:07:50 CEST
I believe this is a  duplicate of bug 11107
Comment 13 Natanael Copa 2016-05-31 10:18:56 CEST
this patch fixes it for me:
https://bugzilla.xfce.org/show_bug.cgi?id=11107#attach_6590
Comment 14 Skunnyk editbugs 2017-06-23 22:23:08 CEST
Can you confirm that #11107 patch fix you issue too ? It's available in xfce4-settings 4.12.1.
Comment 15 Michael Neuffer 2017-06-24 08:31:01 CEST
I can at least say I havn't seen it in quite a while.
I still have another issue:
When I get the initial Login Screen, the displays are setup correctly in the proper native resolution and order.
then after login the order gets changed and I have to run:

xrandr --output VGA-0 --off --output DP-5 --off --output DP-6 --mode 3840x2160 --pos 7040x0 --rotate normal --output DP-4 --mode 3200x1800 --pos 0x0 --rotate normal --output DP-3  --scale 2x2 --mode 1920x1200 --pos 3200x0 --rotate normal --output DP-2 --off --output DP-1 --off --output DP-0 --off
Comment 16 Yan Pas 2017-06-25 00:02:43 CEST
I can confirm that patch for 11107 fixes this issue, thanks!
Comment 17 Skunnyk editbugs 2017-06-25 22:41:38 CEST
Closing, thank you.
