This plugin usually displays the wrong icon for displaying UPS charge status. Instead of showing the icon of a UPS with a vertical green bar beside it when the UPS the pc is connected to is fully charged, it will show a power plug with lightning bolt. If the UPS needs charging, for example, it will say 99% charged and say it needs 9 hours to recharge, instead of properly saying 9 minutes needed to attain full charge. Also it will incorrectly show the icon for a fully charged UPS instead of showing the icon for it needing charging when the UPS does need charging. When fully charged state is achieved, the icon does not properly update itself to indicate the new UPS status. I was unable to ascertain the exact version of this power manager. I'm using xfce v4.12 .
Hey! I don't have a UPS, so I have no way of testing this. However, all values should come directly from UPower, so you can check the output of "upower -d" in the terminal to be sure. In terms of wrong icons, it would help if you could post some screenshots. Could also be a problem with the icon theme you're using. Finally, please check the version of xfce4-power-manager you're using. (Terminal: "xfce4-power-manager --version")
I am seeing this as well on a laptop. I'll focus on the wrong icons issue. Using Xfce 4.12 with xfce4-power-manager 1.4.4 on Ubuntu Trusty. The bug manifests itself mainly on start-up (and before a 'Suspend'). What I see here is 'fully charged' icon in systray when the battery is actually discharging. Also, the c-menu of the systray icon doesn't correctly display the available choices (there should be the first choice which open the Battery device, which is absent). If I plug in the adapter, then the icon remains one of 'fully charged' when actually the battery is not full and it is charging. From my perspective this is a pretty big user-visible issue. I am attaching screenshots and can perform additional debugs if necessary. Usually this wrong icon issue goes away after a suspend/resume, and I'll attach more screenshots when I do that.

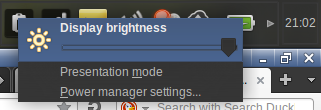

Created attachment 6968 missing Battery item in c-menu

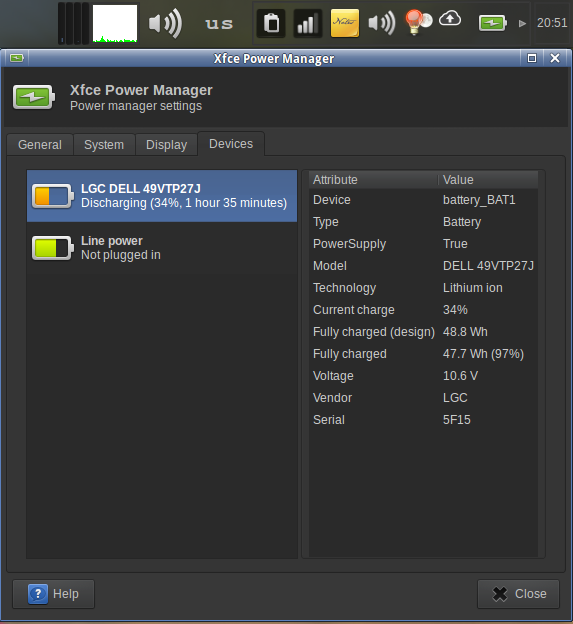

Created attachment 6969 wrong icon when discharging

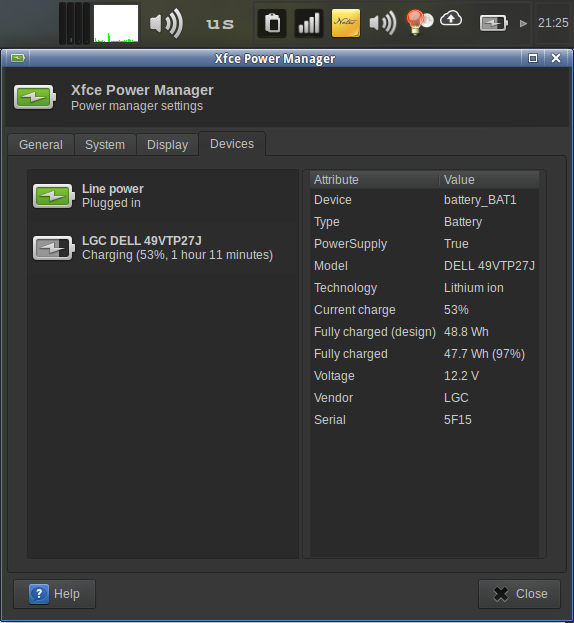

Created attachment 6970 wrong icon when charging

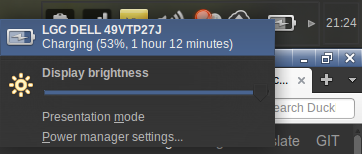

Created attachment 6971 correct items in c-menu

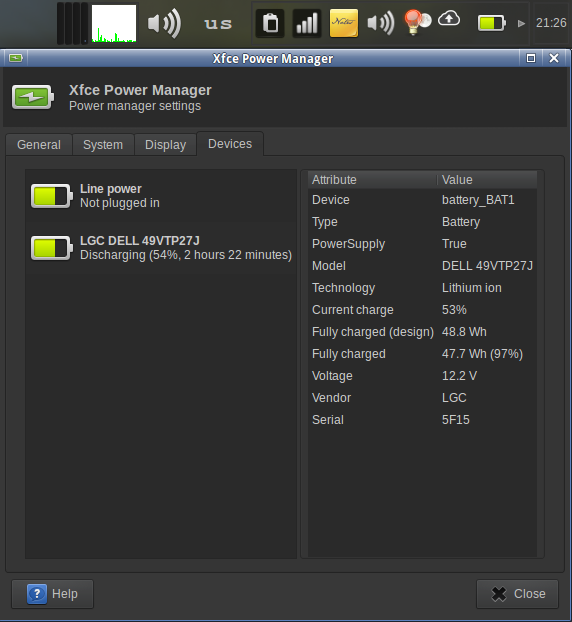

Created attachment 6972 correct icon when discharging

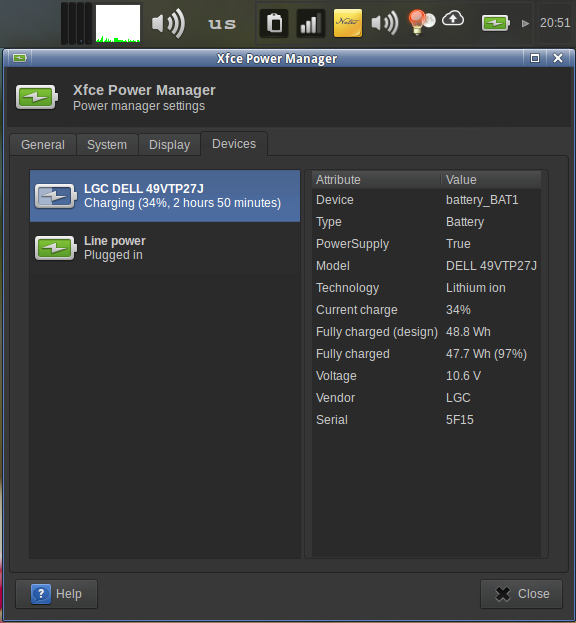

Created attachment 6973 correct icon when charging
I am suffering from a similar bug, sometimes after resume from hibernation on a laptop xfce4-power-manager state is set to battery even when it is connected to the ac supply. However, as mentioned by Simon (https://bugzilla.xfce.org/show_bug.cgi?id=12416#c1), these values are fetched via Upower which itself seems to be at fault: $ upower -d Device: /org/freedesktop/UPower/devices/line_power_ACAD native-path: ACAD power supply: yes updated: Thu 16 Mar 2017 09:10:25 AM IST (134665 seconds ago) has history: no has statistics: no line-power online: no Device: /org/freedesktop/UPower/devices/battery_BAT1 native-path: BAT1 vendor: PAC model: CP700280-01 serial: 01B-Z160409004403Z power supply: yes updated: Fri 17 Mar 2017 10:34:43 PM IST (7 seconds ago) has history: yes has statistics: yes battery present: yes rechargeable: yes state: discharging energy: 45.0468 Wh energy-empty: 0 Wh energy-full: 45.306 Wh energy-full-design: 48.6 Wh energy-rate: 0.3456 W voltage: 12.467 V time to empty: 5.4 days percentage: 99% capacity: 93.2222% technology: lithium-ion Daemon: daemon-version: 0.9.23 can-suspend: yes can-hibernate: yes on-battery: yes on-low-battery: no lid-is-closed: no lid-is-present: yes is-docked: no This is upower-0.9.23 on Slackware Linux 14.2.
Thanks for confirming Aaditya, closing as a bug in upower.
