Using rotation done by xserver upon initialization (as with nv driver) works perfect. Using nvidia driver and accomplishing rotation with "xrandr -o" leaves xfwm4 with the nonrotated height. This means that upon maximization, the window is not maximized to the full length of screen. I have deleted display.xml and all session files and run xfwm4 from outside xfce environment and problem is the same. I have tested icewm, metacity, oroborus, window-maker, blackbox, fvwm and afterstep and none of these window managers exhibit the same problem. The bug might be in an xfce library used by xfwm4 since xfce4-panel and other xfce programs are also confused about the rotated screen's width and height. Reproducible: Always Steps to Reproduce: 1. Use nvidia driver with Options "RandRRotation" "on" 2. Start X and from terminal run "xrandr -o right" 3. Start xfwm4 and maximize terminal window. Actual Results: See details, above. Expected Results: Maximization should cover the entire screen, as other window manager tested do. bash-2.05b$ xfwm4 --version This is xfwm4 version 4.2.2 for Xfce 4.2.2 built with GTK+-2.6.7, linked with GTK+-2.6.7.
That works for me just fine. xfwm4 --version This is xfwm4 version 4.3.0 (revision 15963) for Xfce 4.3.0 built with GTK+-2.4.14, linked with GTK+-2.4.14.
Problem remains with: bash-2.05b$ xfwm4 --version This is xfwm4 version 4.3.0 (revision 15963) for Xfce 4.2.2 built with GTK+-2.6.7, linked with GTK+-2.6.7. I suppose the libraries may be at fault. I'll update libxfcegui4 and libxfce4util to version 4.3.0 to-morrow and check again to see if problem remains or is gone.
$ xfwm4 --version This is xfwm4 version 4.3.0 (revision 15963) for Xfce 4.3.0 built with GTK+-2.6.7, linked with GTK+-2.6.7. Problem continues in cvs trunk: Maximization in a 1024x768 display xrandr rotated to 768x1024 produces maximization to 768x768. Every other window manager, even oroborus, maximizes to 768x1024.
I really doubt it for a very simple reason: The environment has nothing to do with rotate. From a pure logical point of view, rotation is ignored, just the screen size is meaning full. I have to ask that again, sorry, but did you log off/log on after removing .config/xfce4/mcs_settings/display.xml ? That is the only thing that could explain the problem you describe...
Yes I deleted display.xml, in fact, I deleted all .config/xfce4/mcs_settings and also .cache/sessions. To rule out any interference, I also test run X without xfce environment. As such, a simple xterm is created with xinit, from there I execute the window manager of choice (no session, no panel, no nothing). From the xterm I execute window manager of choice. Each and every window manager I've tested, except for xfwm4, will maximize correctly. As you doubt, I will upload screen shots. One maximizing with xfwm and the other with fvwm.

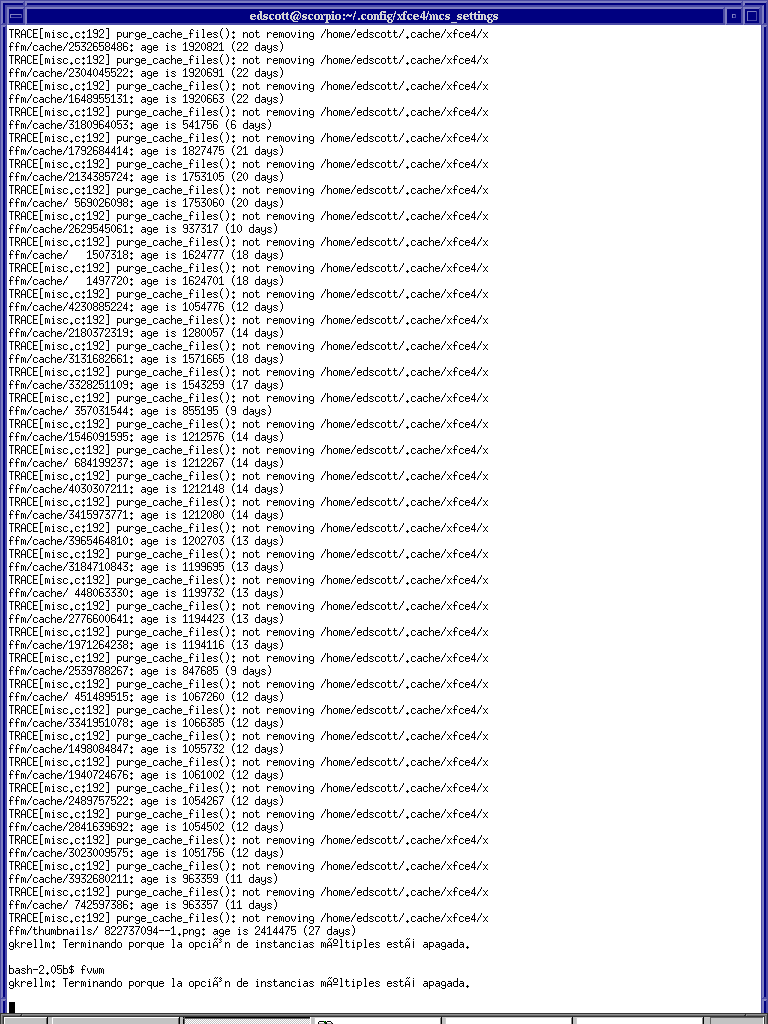

Created attachment 265 maximization with fvwm

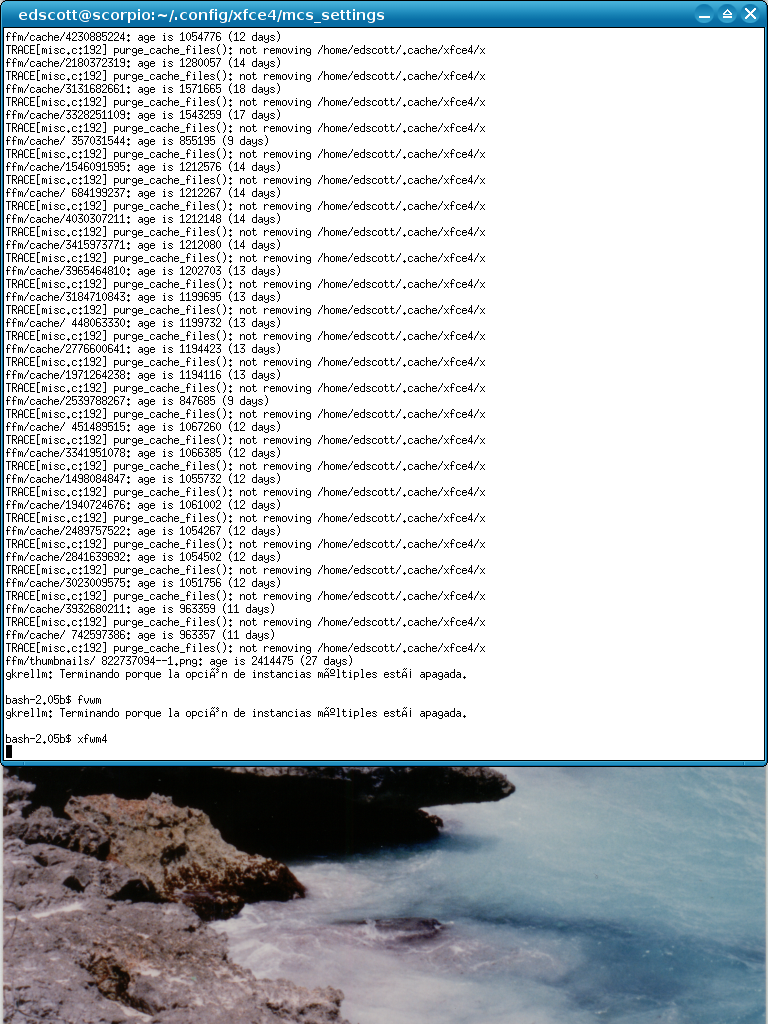

Created attachment 266 maximization with xfwm4
Edscott, can you try this version: http://www.xfce.org/~olivier/preview/xfwm4-4.3.0-r16015.tar.bz2 Or even SVN trunk ? TIA Olivier.
Tried SVN trunk: $ xfwm4 --version This is xfwm4 version 4.3.0 (revision 16015) for Xfce 4.3.0 built with GTK+-2.6.7, linked with GTK+-2.6.7. But the problem remains (no files present in .config/xfce4/mcs_settings, executing nothing from xfce4 except xfwm4). Maybe these warnings I get with CFLAGS="-ggdb -Wunused -Wunused-function -Wunused-label -Wunused-value -Wunused-variable -Wimplicit -Wall" have something to do: $ make >/dev/null client.c: En la funci
Edscott, can you try this: http://www.xfce.org/~olivier/preview/xfwm4-4.3.0-r16023.tar.bz2 compile, install, etc. Restart it from a terminal (like "killall xfwm4 && xfwm4&") Then, when playing with xrandr it should displa ysome info like: $ xrandr -o left The size of the screen is now (1024x1280) The size of the GDK screen is now (1024x1280) $ xrandr -o normal The size of the screen is now (1280x1024) The size of the GDK screen is now (1280x1024) and post the results here?...
bash-2.05b$ xfwm4 --version This is xfwm4 version 4.3.0 (revision 16023) for Xfce 4.3.0 built with GTK+-2.6.7, linked with GTK+-2.6.7. bash-2.05b$ xrandr -o normal bash-2.05b$ xrandr -o right Output: bash-2.05b$ xfwm4 The size of the screen is now (1024x768) The size of the GDK screen is now (1024x768) The size of the screen is now (768x1024) The size of the GDK screen is now (768x1024) Apparently xfwm4 does get the correct size, but maximizes only to 768x768. Maybe if no "margins" are set with mcs-manager, an incorrect lower margin is used?
again, same, can you try this one: http://www.xfce.org/~olivier/preview/xfwm4-4.3.0-r16030.tar.bz2 launched from a terminal, play with xrandrd and maximization and give the messages given like: Max area avail. (x=0, y=0, w=1280; h=988)
PS: seems that gkrellm is running, can you stop it for the tests?
Ok. Gkrellm killed. Then, starting out with a rotated display: bash-2.05b$ xfwm4 --version This is xfwm4 version 4.3.0 (revision 16030) for Xfce 4.3.0 built with GTK+-2.6.7, linked with GTK+-2.6.7. bash-2.05b$xfwm4 Max area avail. (x=0, y=0, w=768; h=768) now lets do "xrandr -o normal" and maximize: The size of the screen is now (1024x768) The size of the GDK screen is now (1024x768) Max area avail. (x=0, y=0, w=1024; h=768) now lets do "xrandr -o right" and maximize: The size of the screen is now (768x1024) The size of the GDK screen is now (768x1024) Max area avail. (x=0, y=0, w=768; h=768) The value for "h" is incorrect for Max area avail.
Created attachment 268 Display current display and screen(s) size 1) Save attachement as "test_display.c" 2) Compile it with cc test_display.c -o test_display `pkg-config --cflags --libs gtk+-2.0`
Edscott, can you try the attached test program "test_display.c"? Compile it, run it, change configuration, rerun it and post the results. TIA, Olivier.
Results for test_display does not look correct. Starting with rotation active under fvwm and then switching to xfwm4: bash-2.05b$ cc test_display.c -o test_display `pkg-config --cflags --libs gtk+- 2.0` bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768) bash-2.05b$ xrandr -o normal bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768) bash-2.05b$ xrandr -o right bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768) bash-2.05b$ xfwm4 & [1] 24269 bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768) bash-2.05b$ xrandr -o normal The size of the screen is now (1024x768) The size of the GDK screen is now (1024x768) bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768) bash-2.05b$ xrandr -o right The size of the screen is now (768x1024) The size of the GDK screen is now (768x1024) bash-2.05b$ ./test_display Current display has 1 screen(s) : - Screen 0, position (0, 0), size (1024, 768)
Edscott, this test is independant from the WM. You could eventually run it ouside of any window manager. If the values aren't correct, then it's a bug with GTK as stated from the very first time. xfwm4 and other xfce components rely on gtk for this. That's why the test is made (very simple pure gtk test) BTW, I'm running 6.8.2-36 from Fedora dev along with NVIDIA-Linux-x86-1.0-7664 driver and I do not see the problem you mention.
Closing at it works for me and it's not a bug with Xfce (at best, it's a bug within the NVidia drivers, at worst, a bug within GTK+)
The following will return the correct size: gdk_window_get_geometry (gdk_get_default_root_window(), NULL,NULL,&root_w,&root_h,NULL); While the code in test_display.c will not be correct: gdk_screen_get_monitor_geometry (gscreen, i, &rect); Maybe xfwm4 needs to use monitor-geometry instead of root-window geometry because of Xinerama support or something. I wonder what the Xlib function would return for monitor geometry. Probably different than the gtk function since different versions of gtk return different things for you and me.
I don't know, that's a bug in NVidia or in gtk, not in xfce anyway.
